An Elkay bottle filling station installation in Qatar should be coordinated as an MEP and architectural installation—not treated as simply mounting a fixture to a wall.
Elkay offers wall-mounted, in-wall, surface-mounted, cooler-combination and outdoor configurations. Their installation requirements can differ significantly.

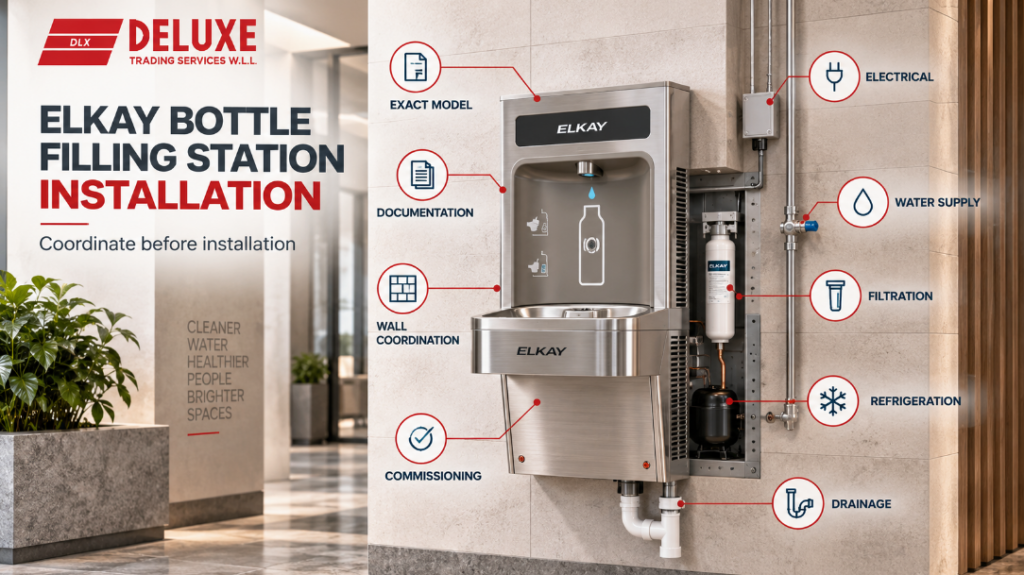

Before installing an Elkay bottle filling station, confirm the exact model, mounting arrangement, water and drainage requirements, electrical supply, refrigeration, filtration, wall construction, accessibility and maintenance access. Use the installation manual corresponding to the exact model.
Step 1 — Confirm the Exact Model
The complete model number determines whether the equipment is:
Filtered/non-filtered, refrigerated/non-refrigerated, indoor/outdoor, in-wall/surface-mounted or combined with a cooler.
Step 2 — Download Manufacturer Documentation
Use the exact-model:
Specification sheet + installation manual + BIM/CAD where needed
Current Elkay Middle East product pages provide these resources for many models.
Step 3 — Coordinate the Wall
In-wall products require especially early coordination.
For example, LZWSM82K uses an in-wall mounting arrangement and includes a chiller and mounting frame.
Coordinate wall cavity, structure, finished surface and service access before closing the wall.
Step 4 — Water and Drainage
Follow the exact manufacturer rough-in and project plumbing design.
Selected ezH2O products use a real drain system, but this is model-specific.
Step 5 — Electrical
Check both voltage and frequency.
Current Middle East models include 220V/50Hz and other electrical variants.
Step 6 — Filtration
For filtered products, coordinate the filter location and leave enough space for replacement.
Step 7 — Refrigeration
Refrigerated models need appropriate electrical and maintenance coordination.
Step 8 — Commission
Follow the manufacturer procedure for flushing, startup and filter preparation where applicable.
Test activation, water flow, drainage, cooling and filter monitoring.
Surface Mount vs In-Wall
A surface-mounted product can have very different wall and service requirements from a recessed in-wall station.
Do not substitute between them without reviewing coordination.
Outdoor Installation
Only install outdoors when the exact model is manufacturer-designated for that environment.
Frequently Asked Questions
How long does installation take?
Installation time varies according to model, existing services, wall construction and whether the project is new-build or retrofit.
Can a bottle filler be added to an existing fountain?
Elkay offers retrofit solutions for compatible applications. Compatibility must be checked.
Does every bottle filler require power?
No. Requirements vary by model.
Do filtered models require extra space?
Maintenance access for the filter must be considered.
Are BIM files available?
Many current Elkay models have downloadable BIM/Revit and CAD resources.
